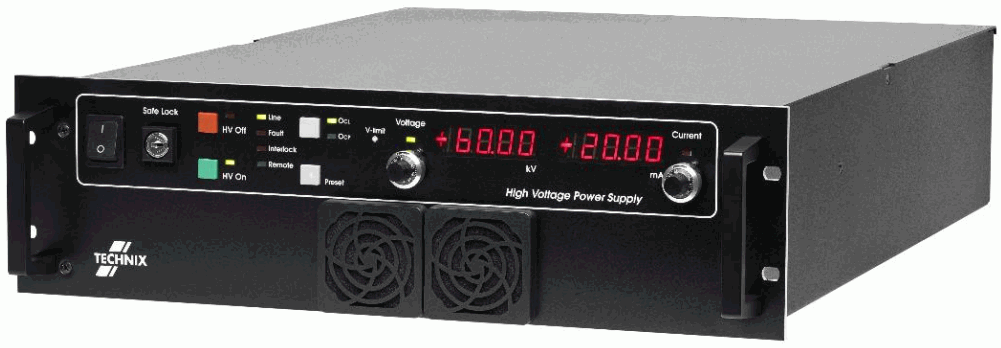

The numerous advantages of compactness, robustness, reliability, and saving offered by the double resonance technology are already available on these models which constitute the low end range.

Four series of power are offered: 300W, 600W, 1.2kW and 2kW.

These products are all based on 3U and 5U height 19’’ rack presentation.

Using a modular design, our products integrate the latest technology components.

Above 20KV, HV blocks are in resin.

Electrical specifications 电特性

Output Voltage and Output Current

Both Voltage Output and Current Output are continuously adjustable from 0 to 100% (full scale)

Local mode: by using 10 turn potentiometers resolution 0.05%

Remote mode: by external 0 to 10V

Voltage regulation*

Load Regulation: ± 0.05% of full voltage (for 0 – 100% load) ± 0.01% available on request

Line Regulation: ± 0.05% of full load (for Mains Voltage ± 10%) ± 0.01% available on request

Current regulation*

Load Regulation: ± 0.05% of full current (for 0 – 100% load)

Line Regulation: ± 0.05% of full load (for Mains Voltage ± 10%)

Ripple + Noise

0.1% RMS of full voltage

Settling time

80ms typical for output voltage ≤ 80kV**, up to 10ms available on request*

Protections

Short circuit

HV arc to ground (Stop time of 100ms)

Shutdown on Over temperature

Open interlock

Stored energy: 1 J/ kW

Stability (after one hour warm-up)

0.01% / hour, operating at constant load and constant ambient temperature

Temperature Coefficient: 100 ppm/°C

Operating Temperature: from 0 to 50°C

Efficiency: > 90% at full load

Air Cooling by air :

Dust filter fans on front panel

Easily removable filters for cleaning

Mains Voltage

170V to 255VAC 47-63Hz Single Phase + Earth

Power Factor Correction Input: ≥ 0.98

Inrush current: limited to full power operating current

Calibration: with probes periodically approved by Authorized Measurement Laboratories

CE Certification

Note：* For fixed polarity

** 300 ms typical for output voltage ≥81kV

Options

? Other voltage and current values available with no extra cost

? Reversibility

? Floating outputs (unipolar or bipolar)

? Non instrumented front panel

? Power regulation

? Other settings for Arc protection

? Arc management

? RS232, Ethernet and Profibus interfaces

? Optical fibre transmission kit with RS232 or Ethernet

? LABVIEW run time for RS232 or Ethernet

? Relay interface 24V DC

? Isolated Remote interface

? Adaptation to Customer’s remote interface

? Emergency stop switch

? Safety signs and devices alerting to hazard

? Industrial dust filters

? Multichannel control unit

? Zero floating

? Adjustable rise time

? Tropicalization

? Transportable “all terrain” container

? Specific AC or DC mains power inputs

? OEM Design on request

? Remote front panel

Any special request can be considered

Physical Description 物理描述

型号示例：

SR 15KV- 300W

Mode : SR model (generator)

Voltage : Adjustable from 0 to 15 kV

Power : 300 W

附件

HV connectors and cables available

型号速览

上海雨芯仪器科技有限公司提供规格书、选型建议与技术支持。
